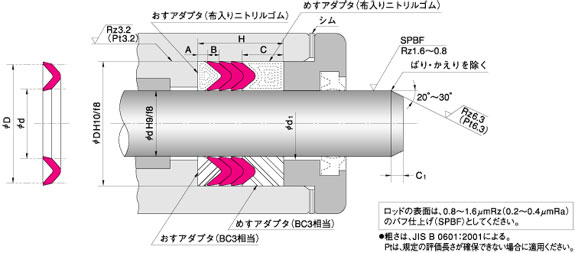

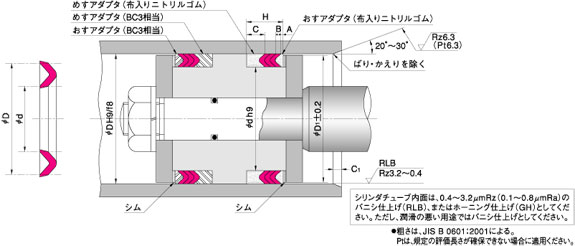

- V96H 活塞和活塞杆密封件-NOK 密封件 小提示：CTRL+F 可直接查到规格
订购致电:0755-28545652 手机:13602589346
| 名义号 |
密封件公称尺寸 |
NOK零件号 |
环的尺寸 |
安装长度H |
C1 |
φd1 |
φD1 |
| 数量 |
| d |
D |
B |
A |
C |
3 |
4 |
5 |
| H 6.3 |
6.3 |
16.3 |
2.5±0.3 |
CV0001F0 |
3 |
5 |
15.5 |
18 |
20.5 |
2 |
d＋1 |
D－1 |
| H 7.1 |
7.1 |
17.1 |
CV0005F0 |
2.5 |
| H 8 |
8 |
18 |
CV0010F0 |
| H 9 |
9 |
19 |
CV0018F0 |
| H 10 |
10 |
20 |
CV0027F0 |
| H 11.2 |
11.2 |
21.2 |
CV0037F0 |
| H 12.5 |
12.5 |
22.5 |
CV0046F0 |
| H 14 |
14 |
24 |
CV0056F0 |
| H 16 |
16 |
26 |
CV0084F0 |
| H 15 |
15 |
28 |
3.0±0.3 |
CV0071F0 |
6.5 |
18.5 |
21.5 |
24.5 |
3.5 |
| H 18 |
18 |
31 |
CV0109F0 |
| H 18.5 |
18.5 |
31.5 |
CV0114F0 |
| H 20 |
20 |
33 |
CV0132F0 |
| H 22.4 |
22.4 |
35.4 |
CV0163F0 |
| H 25 |
25 |
38 |
CV0176F0 |
| H 27 |
27 |
40 |
CV0220F0 |
| H 28 |
28 |
41 |
CV0231F0 |
| H 31.5 |
31.5 |
44.5 |
CV0280F0 |
| H 32 |
32 |
45 |
CV0293F0 |
| H 34 |
34 |
50 |
3.5±0.3 |
CV1893F0 |
8 |
21.5 |
25 |
28.5 |
4 |
| H 35.5 |
35.5 |
51.5 |
CV0338F0 |
| H 40 |
40 |
56 |
CV0369F0 |
| H 45 |
45 |
61 |
CV0417F0 |
| H 47 |
47 |
63 |
CV0440F0 |
| H 50 |
50 |
66 |
CV0456F0 |
| H 53 |
53 |
69 |
CV0502F0 |
| H 55 |
55 |
71 |
CV0517F0 |
| H 56 |
56 |
72 |
CV0538F0 |
| H 60 |
60 |
76 |
CV0561F0 |
| H 63 |
63 |
79 |
CV0598F0 |
| H 64 |
64 |
80 |
CV0619F0 |
| H 67 |
67 |
87 |
4.0±0.3 |
CV0650F0 |
10 |
25 |
29 |
33 |
5 |
D-2 |
| H 70 |
70 |
90 |
CV0673F0 |
| H 71 |
71 |
91 |
CV0700F1 |
| H 75 |
75 |
95 |
CV0710F0 |
| H 80 |
80 |
100 |
CV0754F0 |
| H 85 |
85 |
105 |
CV0792F0 |
d＋2 |
| H 90 |
90 |
110 |
CV0826F0 |
| H 92 |
92 |
112 |
CV0849F0 |
| H 95 |
95 |
115 |
CV0854F0 |
| H 100 |
100 |
120 |
CV0872F0 |
| H 105 |
105 |
125 |
CV0927F0 |
| H 106 |
106 |
126 |
CV0939F0 |
| H 112 |
112 |
132 |
CV0966F0 |
| H 118 |
118 |
138 |
CV1896F0 |
| H 120 |
120 |
140 |
CV0993F0 |
| H 125 |
125 |
150 |
5.0±0.3 |
CV1017F0 |
12.5 |
30.5 |
35.5 |
40.5 |
6.5 |
| H 132 |
132 |
157 |
CV1053F0 |
| H 135 |
135 |
160 |
CV1062F0 |
| H 140 |
140 |
165 |
CV1087F0 |
| H 145 |
145 |
170 |
CV1116F0 |
| H 150 |
150 |
175 |
CV1143F0 |
| H 155 |
155 |
180 |
CV1176F0 |
| H 160 |
160 |
185 |
CV1183C0 |
| H 165 |
165 |
190 |
CV1203F0 |
| H 170 |
170 |
195 |
CV1215F0 |
| H 175 |
175 |
200 |
CV1235F0 |
| H 180 |
180 |
205 |
CV1260F0 |
| H 190 |
190 |
215 |
CV1286F0 |
| H 199 |
199 |
224 |
CV1308F0 |
| H 200 |
200 |
225 |
CV1315F0 |
| H 212 |
212 |
237 |
CV1350F0 |
| H 224 |
224 |
249 |
CV1384F0 |
| H 225 |
225 |
250 |
CV1392F0 |
| H 236 |
236 |
261 |
CV1416F0 |
D－3 |
| H 250 |
250 |
275 |
CV1445F0 |
| H 265 |
265 |
297 |
6±0.4 |
CV1486F0 |
16 |
37 |
43 |
49 |
7.5 |
d＋3 |
| H 280 |
280 |
312 |
CV1512F0 |
| H 300 |
300 |
332 |
CV1539F0 |
|
