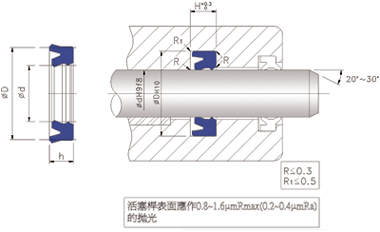

D-3 活塞杆(轴用)专用密封件
-DZ Piston Seal活塞杆专用密封件
材 质:L-98, 比 重(ASTM D792):1.2, 硬 度(ASTM D2240):95±2, 拉 力 强 度(ASTM D412): 588,22小时 70℃ 的 压 缩 变 形率(ASTM D395): 23,22小时 100℃的 压 缩 变形率 (ASTM D395):35, 工作 速度：0.03-1m/sec, 工作 温度：-20℃-100℃，耐 油 性，试验 用油：耐磨 耗液压油，试验 温度：100/120, 试验时间(小时):100/100, 硬压 变化范围：-1/-1, 拉力 强度变化:-5/-29
,体积变化(%) :+0.08/+0.1
现在致电:0755-28545652 手机:13602589346
| DZ Piston Seal活塞专用密封件- D-3 小提示：CTRL+F 可直接查到规格 |
| 品名 |
d |
D |
h |
H |
|
品名 |
d |
D |
h |
H |
| D-3 |
8 |
20 |
8 |
9 |
|
D-3" |
1/2 |
3/4 |
3/16 |
0.207 |
| D-3 |
13 |
20 |
5 |
6 |
|
D-3" |
1/2 |
7/8 |
1/4 |
0.275 |
| D-3 |
15 |
25 |
9 |
10 |
|
D-3" |
3/4 |
1 |
1/4 |
0.275 |
| D-3 |
16 |
22 |
4 |
4.5 |
|
D-3" |
3/4 |
1 |
1/8 |
0.138 |
| D-3 |
16 |
22 |
5 |
6 |
|
D-3" |
5/8 |
7/8 |
1/4 |
0.275 |
| D-3 |
18 |
24 |
8 |
9 |
|
D-3" |
5/8 |
7/8 |
3/16 |
0.207 |
| D-3 |
18 |
25 |
5 |
6 |
|
D-3" |
5/8 |
1 1/8 |
1/4 |
0.275 |
| D-3 |
18 |
26 |
8 |
9 |
|
D-3" |
1 |
1 1/2 |
1/4 |
0.275 |
| D-3 |
18 |
28 |
8 |
9 |
|
D-3" |
1 |
1 1/2 |
3/8 |
0.413 |
| D-3 |
20 |
28 |
5.7 |
6.3 |
|
D-3" |
1 |
1 1/4 |
1/4 |
0.275 |
| D-3 |
20 |
30 |
8 |
9 |
|
D-3" |
1 |
1 3/8 |
1/4 |
0.275 |
| D-3 |
22 |
28 |
4.5 |
6.3 |
|
D-3" |
1 |
1 3/8 |
5/16 |
0.344 |
| D-3 |
22 |
30 |
5.7 |
6.3 |
|
D-3" |
1 1/2 |
1 3/4 |
1/4 |
0.275 |
| D-3 |
22 |
32 |
7 |
8 |
|
D-3" |
1 1/2 |
1 7/8 |
1/4 |
0.275 |
| D-3 |
25 |
33 |
6.3 |
7 |
|
D-3" |
1 1/2 |
1 7/8 |
3/16 |
0.207 |
| D-3 |
25 |
33 |
6.8 |
7.5 |
|
D-3" |
1 1/2 |
1 7/8 |
3/8 |
0.413 |
| D-3 |
25 |
35 |
7 |
8 |
|
D-3" |
1 1/2 |
1 7/8 |
5/16 |
0.344 |
| D-3 |
25 |
35 |
7.3 |
8 |
|
D-3" |
1 1/2 |
2 |
1/4 |
0.275 |
| D-3 |
25 |
35 |
8 |
9 |
|
D-3" |
1 1/2 |
2 |
3/8 |
0.413 |
| D-3 |
25 |
35 |
10 |
11 |
|
D-3" |
1 1/2 |
2 |
5/16 |
0.344 |
| D-3 |
25.4 |
31.75 |
5.69 |
6.35 |
|
D-3" |
1 1/2 |
2 1/8 |
3/8 |
0.413 |
| D-3 |
26 |
36 |
10 |
11 |
|
D-3" |
1 1/4 |
1 1/2 |
1/4 |
0.275 |
| D-3 |
28 |
36 |
5.6 |
6.3 |
|
D-3" |
1 1/4 |
1 1/2 |
3/16 |
0.207 |
| D-3 |
28 |
38 |
7.3 |
8 |
|
D-3" |
1 1/4 |
1 1/2 |
5/16 |
0.344 |
| D-3 |
28 |
40 |
6 |
7 |
|
D-3" |
1 1/4 |
1 3/4 |
3/8 |
0.413 |
| D-3 |
30 |
36 |
6.3 |
7 |
|
D-3" |
1 1/4 |
1 5/8 |
1/4 |
0.275 |
| D-3 |
30 |
37 |
5 |
6 |
|
D-3" |
1 1/4 |
1 5/8 |
3/16 |
0.207 |
| D-3 |
30 |
38 |
5.7 |
6.3 |
|
D-3" |
1 1/4 |
1 5/8 |
5/16 |
0.344 |
| D-3 |
30 |
38 |
6.3 |
7 |
|
D-3" |
1 1/4 |
2 |
1/4 |
0.275 |
| D-3 |
30 |
38 |
8 |
9 |
|
D-3" |
1 1/8 |
1 3/8 |
3/16 |
0.207 |
| D-3 |
30 |
40 |
6 |
7 |
|
D-3" |
1 3/4 |
2 |
1/4 |
0.275 |
| D-3 |
30 |
40 |
7.3 |
8 |
|
D-3" |
1 3/4 |
2 1/2 |
7/16 |
0.481 |
| D-3 |
30 |
40 |
8 |
9 |
|
D-3" |
1 3/4 |
2 1/4 |
1/4 |
0.275 |
| D-3 |
30 |
40 |
9 |
10 |
|
D-3" |
1 3/4 |
2 1/4 |
3/8 |
0.413 |
| D-3 |
30 |
40 |
10 |
11 |
|
D-3" |
1 3/4 |
2 1/8 |
1/4 |
0.275 |
| D-3 |
30 |
50 |
11 |
12 |
|
D-3" |
1 3/4 |
2 1/8 |
3/16 |
0.207 |
| D-3 |
32 |
40 |
6 |
7 |
|
D-3" |
1 3/4 |
2 1/8 |
3/8 |
0.413 |
| D-3 |
32 |
40 |
7.7 |
9 |
|
D-3" |
1 3/4 |
2 1/8 |
5/16 |
0.344 |
| D-3 |
32 |
42 |
5.7 |
6.3 |
|
D-3" |
1 3/4 |
2 1/8 |
25/64 |
0.43 |
| D-3 |
32 |
47 |
10 |
11 |
|
D-3" |
1 3/8 |
1 3/4 |
5/16 |
0.344 |
| D-3 |
35 |
43 |
8.3 |
9 |
|
D-3" |
1 3/8 |
1 5/8 |
1/4 |
0.275 |
| D-3 |
35 |
45 |
6 |
7 |
|
D-3" |
1 3/8 |
1 7/8 |
3/8 |
0.413 |
| D-3 |
35 |
45 |
7 |
8 |
|
D-3" |
1 3/8 |
2 |
3/8 |
0.413 |
| D-3 |
35 |
45 |
10 |
11 |
|
D-3" |
1 5/8 |
1 7/8 |
1/4 |
0.275 |
| D-3 |
35 |
51 |
9 |
10 |
|
D-3" |
1 5/8 |
2 |
5/16 |
0.344 |
| D-3 |
35.5 |
45 |
6 |
7 |
|
D-3" |
1 7/8 |
2 1/4 |
3/8 |
0.413 |
| D-3 |
36 |
44 |
5.7 |
6.3 |
|
D-3" |
2 |
2 1/2 |
3/8 |
0.413 |
| D-3 |
36 |
46 |
7.3 |
8 |
|
D-3" |
2 |
2 1/2 |
5/16 |
0.344 |
| D-3 |
37 |
47 |
8 |
9 |
|
D-3" |
2 |
2 1/4 |
1/4 |
0.275 |
| D-3 |
37 |
47 |
10 |
11 |
|
D-3" |
2 |
2 3/8 |
3/16 |
0.207 |
| D-3 |
38 |
48 |
8 |
9 |
|
D-3" |
2 |
2 3/8 |
3/8 |
0.207 |
| D-3 |
38 |
48 |
10 |
11 |
|
D-3" |
2 |
2 3/8 |
5/16 |
0.344 |
| D-3 |
38 |
58 |
10 |
11 |
|
D-3" |
2 |
2 5/8 |
1/2 |
0.55 |
| D-3 |
40 |
48 |
5.7 |
6.3 |
|
D-3" |
2 |
2 5/8 |
5/16 |
0.344 |
| D-3 |
40 |
50 |
7.3 |
8 |
|
D-3" |
2 1/2 |
2 7/8 |
3/8 |
0.413 |
| D-3 |
40 |
50 |
8 |
9 |
|
D-3" |
2 1/2 |
3 |
3/8 |
0.413 |
| D-3 |
40 |
50 |
10 |
11 |
|
D-3" |
2 1/2 |
3 1/4 |
5/8 |
0.688 |
| D-3 |
40 |
52.75 |
8 |
9 |
|
D-3" |
2 1/2 |
3 1/4 |
9/16 |
0.619 |
| D-3 |
40 |
55 |
9 |
10 |
|
D-3" |
2 1/4 |
2 3/4 |
3/8 |
0.413 |
| D-3 |
40 |
55 |
10 |
11 |
|
D-3" |
2 1/4 |
2 11/16 |
3/8 |
0.413 |
| D-3 |
42 |
50 |
5.7 |
6.3 |
|
D-3" |
2 1/4 |
3 |
1/2 |
0.55 |
| D-3 |
45 |
55 |
7 |
8 |
|
D-3" |
2 3/4 |
3 1/2 |
5/8 |
0.688 |
| D-3 |
45 |
55 |
7.3 |
8 |
|
D-3" |
2 3/4 |
3 1/4 |
3/8 |
0.413 |
| D-3 |
45 |
55 |
10 |
11 |
|
D-3" |
2 3/4 |
3 1/8 |
3/8 |
0.413 |
| D-3 |
45 |
60 |
10 |
11 |
|
D-3" |
2 5/8 |
3 |
3/8 |
0.413 |
| D-3 |
45 |
60 |
11.4 |
12.5 |
|
D-3" |
2 7/8 |
3 1/4 |
5/16 |
0.344 |
| D-3 |
50 |
60 |
7.3 |
8 |
|
D-3" |
3 |
3 1/2 |
3/8 |
0.413 |
| D-3 |
50 |
60 |
8 |
9 |
|
D-3" |
3 |
3 5/8 |
1/2 |
0.55 |
| D-3 |
50 |
60 |
9 |
10 |
|
D-3" |
3 1/2 |
4 |
3/8 |
0.413 |
| D-3 |
50 |
60 |
10 |
11 |
|
D-3" |
3 1/4 |
3 3/4 |
3/8 |
0.413 |
| D-3 |
50 |
65 |
9 |
10 |
|
D-3" |
3 1/4 |
3 5/8 |
3/8 |
0.413 |
| D-3 |
50 |
65 |
10.9 |
12 |
|
D-3" |
3 1/4 |
4 |
5/8 |
0.688 |
| D-3 |
50 |
65 |
11.4 |
12.5 |
|
D-3" |
3 3/8 |
3 3/4 |
5/16 |
0.344 |
| D-3 |
52 |
62 |
10 |
11 |
|
D-3" |
3 7/8 |
4 1/4 |
5/16 |
0.344 |
| D-3 |
55 |
65 |
6 |
7 |
|
D-3" |
4 |
4 1/2 |
3/8 |
0.413 |
| D-3 |
55 |
65 |
10 |
11 |
|
D-3" |
4 |
4 3/4 |
9/16 |
0.619 |
| D-3 |
55 |
65 |
12 |
13 |
|
D-3" |
4 |
4 5/8 |
3/8 |
0.413 |
| D-3 |
55 |
70 |
11.4 |
12.5 |
|
D-3" |
4 |
4 5/8 |
9/16 |
0.619 |
| D-3 |
56 |
71 |
12.5 |
13.5 |
|
D-3" |
4 1/2 |
5 |
1/2 |
0.55 |
| D-3 |
57 |
67 |
8 |
9 |
|
D-3" |
4 1/2 |
5 |
3/8 |
0.413 |
| D-3 |
60 |
68 |
8 |
9 |
|
D-3" |
4 1/2 |
5 |
9/16 |
0.619 |
| D-3 |
60 |
70 |
10 |
11 |
|
D-3" |
4 1/2 |
5 1/8 |
1/2 |
0.55 |
| D-3 |
60 |
70 |
12 |
13 |
|
D-3" |
4 1/4 |
4 3/4 |
9/16 |
0.619 |
| D-3 |
60 |
72 |
9 |
10 |
|
D-3" |
4 1/4 |
5 |
1/2 |
0.55 |
| D-3 |
60 |
78 |
10 |
11 |
|
D-3" |
4 1/4 |
5 |
9/16 |
0.619 |
| D-3 |
63 |
73 |
12 |
13 |
|
D-3" |
4 3/4 |
5 1/8 |
3/8 |
0.413 |
| D-3 |
63 |
73 |
13 |
14 |
|
D-3" |
5 |
5 1/2 |
1/2 |
0.55 |
| D-3 |
63 |
78 |
10 |
11 |
|
D-3" |
5 1/2 |
6 |
3/8 |
0.413 |
| D-3 |
63 |
78 |
11.4 |
12.5 |
|
D-3" |
5 1/4 |
6 |
5/8 |
0.688 |
| D-3 |
63 |
78 |
12.5 |
13.5 |
|
D-3" |
6 1/2 |
7 |
3/8 |
0.413 |
| D-3 |
65 |
75 |
7 |
8 |
|
D-3" |
6 3/4 |
7 1/4 |
3/8 |
0.413 |
| D-3 |
65 |
75 |
11.5 |
12.5 |
|
D-3" |
6 3/4 |
7 1/4 |
5/8 |
0.688 |
| D-3 |
70 |
80 |
12 |
13 |
|
|
|
|
|
|
| D-3 |
70 |
85 |
11.4 |
12.5 |
|
|
|
|
|
|
| D-3 |
75 |
90 |
10 |
11 |
|
|
|
|
|
|
| D-3 |
75 |
95 |
12.5 |
13.5 |
|
|
|
|
|
|
| D-3 |
80 |
88 |
8 |
9 |
|
|
|
|
|
|
| D-3 |
80 |
88 |
11.5 |
12.5 |
|
|
|
|
|
|
| D-3 |
80 |
95 |
11.4 |
12.5 |
|
|
|
|
|
|
| D-3 |
80 |
95 |
11.8 |
13 |
|
|
|
|
|
|
| D-3 |
85 |
93 |
11.5 |
12.5 |
|
|
|
|
|
|
| D-3 |
90 |
98 |
8.5 |
9.5 |
|
|
|
|
|
|
| D-3 |
90 |
98 |
11.5 |
12.5 |
|
|
|
|
|
|
| D-3 |
90 |
105 |
11.4 |
12.5 |
|
|
|
|
|
|
| D-3 |
95 |
103 |
11.5 |
12.5 |
|
|
|
|
|
|
| D-3 |
97 |
105 |
11.5 |
12.5 |
|
|
|
|
|
|
| D-3 |
100 |
110 |
15 |
16 |
|
|
|
|
|
|
| D-3 |
100 |
115 |
11.8 |
13 |
|
|
|
|
|
|
| D-3 |
100 |
120 |
15 |
16 |
|
|
|
|
|
|
| D-3 |
100 |
120 |
16 |
17 |
|
|
|
|
|
|
| D-3 |
105 |
113 |
11 |
12 |
|
|
|
|
|
|
| D-3 |
120 |
130 |
11.5 |
12.5 |
|
|
|
|
|
|
| D-3 |
120 |
130 |
15 |
16 |
|
|
|
|
|
|
| D-3 |
125 |
145 |
12 |
13 |
|
|
|
|
|
|
| D-3 |
125 |
145 |
13 |
14 |
|
|
|
|
|
|
| D-3 |
130 |
145 |
12 |
13 |
|
|
|
|
|
|
| D-3 |
140 |
150 |
15 |
16 |
|
|
|
|
|
|
| D-3 |
150 |
160 |
14.5 |
16 |
|
|
|
|
|
|
| D-3 |
152 |
160 |
11.5 |
12.5 |
|
|
|
|
|
|
| D-3 |
160 |
170 |
15 |
16 |
|
|
|
|
|
|
| D-3 |
172 |
180 |
11.5 |
12.5 |
|
|
|
|
|
|
| D-3 |
205 |
215 |
15 |
16 |
|
|
|
|
|
|
| D-3 |
210 |
225 |
14 |
15 |
|
|
|
|
|
|
| D-3 |
220 |
250 |
18 |
19 |
|
|
|
|
|
|
|
