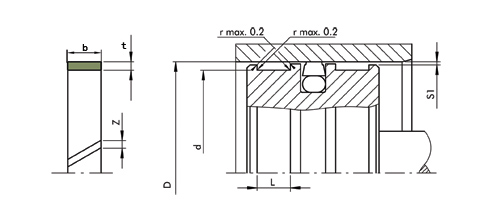

•  GST 导向环 密封圈  液压 密封件

标准材料:填充聚四氟乙烯F-PTFE
应用范围:导向环GST适用于液压缸、气缸中活塞和活塞杆的导向,起支承与导向作用.设计选用时可参考Trelleborg公司GR系列标准.符合GB/T15242.4标准.
工况条件

速  度	压力范围	温度范围	介  质	可供直径范围
15m/s	-	-55℃ +225℃	液压油、乳化液、水	按需求定制

GSF  孔用格莱圈(格来圈)                                                         >>>>>>>>>>>>格莱圈(格来圈)的安装方法
订货号	缸径	底径	宽度		订货号	缸径	底径	宽度
	DN H9	d1 h9	L1+0.2			DN H9	d1 h9	L1+0.2
GSF0080	8	3.1	2.2		GSF1700	170	149.0	8.1
GSF0100	10	5.1	2.2		GSF1750	175	154	8.1
GSF0120	12	7.1	2.2		GSF1800	180	159.0	8.1
GSF0140	14	9.1	2.2		GSF1900	190	169.0	8.1
GSF0150	15	7.5	3.2		GSF2000/1	200	184.5	6.3
GSF0160	16	11.1	2.2		GSF2000	200	179.0	8.1
GSF0160/1	16	8.5	3.2		GSF2100	210	189.0	8.1
GSF0180	18	13.1	2.2		GSF2200	220	199.0	8.1
GSF0180/1	18	10.5	3.2		GSF2300	230	209.0	8.1
GSF0200	20	15.1	2.2		GSF2400	240	219.0	8.1
GSF0200/1	20	12.5	3.2		GSF2500/1	250	235.5	6.3
GSF0210	21	13.5	3.2		GSF2500	250	229.0	8.1
GSF0220	22	17.1	2.2		GSF2600	260	239.0	8.1
GSF0220/1	22	14.5	3.2		GSF2700	270	249.0	8.1
GSF0240	24	16.5	3.2		GSF2800	280	259.0	8.1
GSF0250	25	17.5	3.2		GSF2900	290	269.0	8.1
GSF0280	28	20.5	3.2		GSF3000	300	279.0	8.1
GSF0300	30	22.5	3.2		GSF3100	310	289.0	8.1
GSF0320	32	24.5	3.2		GSF3200	320	299.0	8.1
GSF0320/1	32	21.0	4.2		GSF3200/1	320	295.5	8.1
GSF0350	35	27.5	3.2		GSF3300	330	305.5	8.1
GSF0350/1	35	24.0	4.2		GSF3400	340	315.5	8.1
GSF0360	36	28.5	3.2		GSF3500	350	325.5	8.1
GSF0380	38	30.5	3.2		GSF3600	360	335.5	8.1
GSF0390	39	31.5	3.2		GSF3700	370	345.5	8.1
GSF0400	40	32.5	3.2		GSF3800	380	355.5	8.1
GSF0400/1	40	29.0	4.2		GSF3900	390	365.5	8.1
GSF0420	42	31.0	4.2		GSF4000	400	375.5	8.1
GSF0450	45	34.0	4.2		GSF4100	410	385.5	8.1
GSF0480	48	37.0	4.2		GSF4200	420	395.5	8.1
GSF0500	50	39.0	4.2		GSF4300	430	405.5	8.1
GSF0500/1	50	34.5	6.3		GSF4400	440	415.5	8.1
GSF0520	52	41.0	4.2		GSF4500	450	425.5	8.1
GSF0530	53	42.0	4.2		GSF4600	460	435.5	8.1
GSF0550	55	44.0	4.2		GSF4700	470	445.5	8.1
GSF0570	57	46.0	4.2		GSF4800	480	455.5	8.1
GSF0580	58	47.0	4.2		GSF4900	490	465.5	8.1
GSF0600	60	49.0	4.2		GSF5000	500	475.5	8.1
GSF0620	62	51.0	4.2		GSF5100	510	485.5	8.1
GSF0630	63	52.0	4.2		GSF5200	520	495.5	8.1
GSF0630/1	63	47.5	6.3		GSF5300	530	505.5	8.1
GSF0640	64	53.0	4.2		GSF5400	540	515.5	8.1
GSF0650	65	54.0	4.2		GSF5500	550	525.5	8.1
GSF0700	70	59	4.2		GSF5600	560	535.5	8.1
GSF0700/1	70	54.5	6.3		GSF5700	570	545.5	8.1
GSF0750	75	64.0	4.2		GSF5800	580	555.5	8.1
GSF0800	80	64.5	6.3		GSF5900	590	565.5	8.1
GSF0800/1	80	59.0	8.1		GSF6000	600	575.5	8.1
GSF0850	85	69.5	6.3		GSF6100	610	585.5	8.1
GSF0890	89	73.5	6.3		GSF6200	620	595.5	8.1
GSF0900/1	90	79.0	4.2		GSF6300	630	605.5	8.1
GSF0900	90	74.5	6.3		GSF6400	640	615.5	8.1
GSF0950	95	79.5	6.3		GSF6500	650	625.5	8.1
GSF1000/1	100	89.0	4.2		GSF6600	660	635.5	8.1
GSF1000	100	84.5	6.3		GSF6700	670	642.0	9.5
GSF1000/2	100	79.0	8.1		GSF6800	680	652.0	9.5
GSF1050	105	89.5	6.3		GSF6900	690	662.0	9.5
GSF1100	110	94.5	6.3		GSF7000	700	672.0	9.5
GSF1150	115	99.5	6.3		GSF7100	710	682.0	9.5
GSF1200	120	104.5	6.3		GSF7400	740	712.0	9.5
GSF1250	125	109.5	6.3		GSF7500	750	722.0	9.5
GSF1250/1	125	104.0	8.1		GSF8000	800	772.0	9.5
GSF1270	127	111.5	6.3	GSF9000	900	872.0	9.5
GSF1300	130	114.5	6.3	GSF10000	1000	972.0	9.5
GSF1300/1	130	109.0	8.1	GSF10000/1	1000	962.0	13.8
GSF1320	132	116.5	6.3	GSF10500	1050	1022.0	9.5
GSF1330	133	112.0	8.1	GSF10650	1065	1027.0	13.8
GSF1350	135	114.0	8.1	GSF10700	1070	1032.0	13.8
GSF1400	140	119.0	8.1	GSF12000	1200	1172.0	9.5
GSF1450	145	124.0	8.1	GSF12000/1	1200	1162.0	13.8
GSF1500	150	129.0	8.1	GSF12250	1225	1187.0	13.8
GSF1550	155	134.0	8.1	GSF15000	1500	1462.0	13.8
GSF1600	160	139.0	8.1	GSF20000	2000	1962.0	13.8
GSF1600/1	160	144.5	6.3
GSF1650	165	144	8.1

格莱圈(格来圈)的安装方式--点击进入

大量库存,欢迎致电:0755-28545652 订购
