- 防尘密封圈 GSZ5 液压 密封件
订购致电:0755-28545652 手机:13602589346
标准材料,密封环:填充聚四氟乙烯F-PTFE或聚氨酯PU,O形圈:丁腈橡胶NBR或氟橡胶FKM

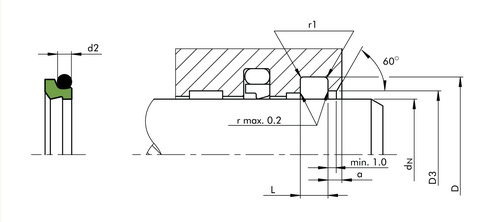

应用范围,由一个带密封刃口和防尘刃口的耐磨圈以及一个作为预紧元件的O形圈组成的双唇防尘圈.适用于尘埃严重或严寒的环境以及高频往复运动.主要应用于液压及气动装置,伺服系统,化工及食品设备.设计选用时可参考Trelleborg公司WE5系列、 Parker公司AD系列标准
特点:优异的滑动性,启动时，无粘滞及爬行现象,坚固的防尘圈,用于重型用途,能补偿活塞杆或柱塞较大的变形,刮除污染物的效果非常好,即使是很牢固的粘着物,能从内侧有效地挡住粘附在活塞杆表面的剩余油膜,与液压介质的相容性非常好
工况条件
应用范围,由一个带密封刃口和防尘刃口的耐磨圈以及一个作为预紧元件的O形圈组成的双唇防尘圈.适用于尘埃严重或严寒的环境以及高频往复运动.主要应用于液压及气动装置,伺服系统,化工及食品设备.设计选用时可参考Trelleborg公司WE5系列、 Parker公司AD系列标准
特点:优异的滑动性,启动时，无粘滞及爬行现象,坚固的防尘圈,用于重型用途,能补偿活塞杆或柱塞较大的变形,刮除污染物的效果非常好,即使是很牢固的粘着物,能从内侧有效地挡住粘附在活塞杆表面的剩余油膜,与液压介质的相容性非常好
工况条件
|
速 度 |
压力范围 |
温度范围 |
介 质 |
可供直径范围 |
|
|
- |
|
石油基液压油，难燃液压液，环保安全液压液（生物油）、水和其它 |
20 |
|
活塞杆直径 |
沟槽直径 |
沟槽宽度 |
直径 |
止口宽度 |
O形圈截面 |
|
dN f8 |
D H9 |
L +0.2 |
D3 H11 |
a min |
d2 |
|
19.0-39.9 |
dN+7.6 |
4.2 |
d+1.5 |
3.0 |
2.62 |
|
40.0-69.9 |
dN+8.8 |
6.3 |
d+1.5 |
3.0 |
2.62 |
|
70.0-139.9 |
dN+12.2 |
8.1 |
d+2.0 |
4.0 |
3.53 |
|
140.0-399.9 |
dN+16.0 |
9.5 |
d+2.5 |
5.0 |
5.33 |
|
400.0-649.9 |
dN+24.0 |
14.0 |
d+2.5 |
8.0 |
7.00 |
|
650.0-999.9 |
dN+27.3 |
16.0 |
d+2.5 |
10.0 |
8.40 |
|
> 1000.0 |
dN+27.3 |
16.0 |
d+2.5 |
10.0 |
8.40 |
| GSF 孔用格莱圈(格来圈) >>>>>>>>>>>>格莱圈(格来圈)的安装方法 | |||||||||||||
| 订货号 | 缸径 | 底径 | 宽度 | 订货号 | 缸径 | 底径 | 宽度 | ||||||
| DN H9 | d1 h9 | L1+0.2 | DN H9 | d1 h9 | L1+0.2 | ||||||||
| GSF0080 | 8 | 3.1 | 2.2 | GSF1700 | 170 | 149.0 | 8.1 | ||||||
| GSF0100 | 10 | 5.1 | 2.2 | GSF1750 | 175 | 154 | 8.1 | ||||||
| GSF0120 | 12 | 7.1 | 2.2 | GSF1800 | 180 | 159.0 | 8.1 | ||||||
| GSF0140 | 14 | 9.1 | 2.2 | GSF1900 | 190 | 169.0 | 8.1 | ||||||
| GSF0150 | 15 | 7.5 | 3.2 | GSF2000/1 | 200 | 184.5 | 6.3 | ||||||
| GSF0160 | 16 | 11.1 | 2.2 | GSF2000 | 200 | 179.0 | 8.1 | ||||||
| GSF0160/1 | 16 | 8.5 | 3.2 | GSF2100 | 210 | 189.0 | 8.1 | ||||||
| GSF0180 | 18 | 13.1 | 2.2 | GSF2200 | 220 | 199.0 | 8.1 | ||||||
| GSF0180/1 | 18 | 10.5 | 3.2 | GSF2300 | 230 | 209.0 | 8.1 | ||||||
| GSF0200 | 20 | 15.1 | 2.2 | GSF2400 | 240 | 219.0 | 8.1 | ||||||
| GSF0200/1 | 20 | 12.5 | 3.2 | GSF2500/1 | 250 | 235.5 | 6.3 | ||||||
| GSF0210 | 21 | 13.5 | 3.2 | GSF2500 | 250 | 229.0 | 8.1 | ||||||
| GSF0220 | 22 | 17.1 | 2.2 | GSF2600 | 260 | 239.0 | 8.1 | ||||||
| GSF0220/1 | 22 | 14.5 | 3.2 | GSF2700 | 270 | 249.0 | 8.1 | ||||||
| GSF0240 | 24 | 16.5 | 3.2 | GSF2800 | 280 | 259.0 | 8.1 | ||||||
| GSF0250 | 25 | 17.5 | 3.2 | GSF2900 | 290 | 269.0 | 8.1 | ||||||
| GSF0280 | 28 | 20.5 | 3.2 | GSF3000 | 300 | 279.0 | 8.1 | ||||||
| GSF0300 | 30 | 22.5 | 3.2 | GSF3100 | 310 | 289.0 | 8.1 | ||||||
| GSF0320 | 32 | 24.5 | 3.2 | GSF3200 | 320 | 299.0 | 8.1 | ||||||
| GSF0320/1 | 32 | 21.0 | 4.2 | GSF3200/1 | 320 | 295.5 | 8.1 | ||||||
| GSF0350 | 35 | 27.5 | 3.2 | GSF3300 | 330 | 305.5 | 8.1 | ||||||
| GSF0350/1 | 35 | 24.0 | 4.2 | GSF3400 | 340 | 315.5 | 8.1 | ||||||
| GSF0360 | 36 | 28.5 | 3.2 | GSF3500 | 350 | 325.5 | 8.1 | ||||||
| GSF0380 | 38 | 30.5 | 3.2 | GSF3600 | 360 | 335.5 | 8.1 | ||||||
| GSF0390 | 39 | 31.5 | 3.2 | GSF3700 | 370 | 345.5 | 8.1 | ||||||
| GSF0400 | 40 | 32.5 | 3.2 | GSF3800 | 380 | 355.5 | 8.1 | ||||||
| GSF0400/1 | 40 | 29.0 | 4.2 | GSF3900 | 390 | 365.5 | 8.1 | ||||||
| GSF0420 | 42 | 31.0 | 4.2 | GSF4000 | 400 | 375.5 | 8.1 | ||||||
| GSF0450 | 45 | 34.0 | 4.2 | GSF4100 | 410 | 385.5 | 8.1 | ||||||
| GSF0480 | 48 | 37.0 | 4.2 | GSF4200 | 420 | 395.5 | 8.1 | ||||||
| GSF0500 | 50 | 39.0 | 4.2 | GSF4300 | 430 | 405.5 | 8.1 | ||||||
| GSF0500/1 | 50 | 34.5 | 6.3 | GSF4400 | 440 | 415.5 | 8.1 | ||||||
| GSF0520 | 52 | 41.0 | 4.2 | GSF4500 | 450 | 425.5 | 8.1 | ||||||
| GSF0530 | 53 | 42.0 | 4.2 | GSF4600 | 460 | 435.5 | 8.1 | ||||||
| GSF0550 | 55 | 44.0 | 4.2 | GSF4700 | 470 | 445.5 | 8.1 | ||||||
| GSF0570 | 57 | 46.0 | 4.2 | GSF4800 | 480 | 455.5 | 8.1 | ||||||
| GSF0580 | 58 | 47.0 | 4.2 | GSF4900 | 490 | 465.5 | 8.1 | ||||||
| GSF0600 | 60 | 49.0 | 4.2 | GSF5000 | 500 | 475.5 | 8.1 | ||||||
| GSF0620 | 62 | 51.0 | 4.2 | GSF5100 | 510 | 485.5 | 8.1 | ||||||
| GSF0630 | 63 | 52.0 | 4.2 | GSF5200 | 520 | 495.5 | 8.1 | ||||||
| GSF0630/1 | 63 | 47.5 | 6.3 | GSF5300 | 530 | 505.5 | 8.1 | ||||||
| GSF0640 | 64 | 53.0 | 4.2 | GSF5400 | 540 | 515.5 | 8.1 | ||||||
| GSF0650 | 65 | 54.0 | 4.2 | GSF5500 | 550 | 525.5 | 8.1 | ||||||
| GSF0700 | 70 | 59 | 4.2 | GSF5600 | 560 | 535.5 | 8.1 | ||||||
| GSF0700/1 | 70 | 54.5 | 6.3 | GSF5700 | 570 | 545.5 | 8.1 | ||||||
| GSF0750 | 75 | 64.0 | 4.2 | GSF5800 | 580 | 555.5 | 8.1 | ||||||
| GSF0800 | 80 | 64.5 | 6.3 | GSF5900 | 590 | 565.5 | 8.1 | ||||||
| GSF0800/1 | 80 | 59.0 | 8.1 | GSF6000 | 600 | 575.5 | 8.1 | ||||||
| GSF0850 | 85 | 69.5 | 6.3 | GSF6100 | 610 | 585.5 | 8.1 | ||||||
| GSF0890 | 89 | 73.5 | 6.3 | GSF6200 | 620 | 595.5 | 8.1 | ||||||
| GSF0900/1 | 90 | 79.0 | 4.2 | GSF6300 | 630 | 605.5 | 8.1 | ||||||
| GSF0900 | 90 | 74.5 | 6.3 | GSF6400 | 640 | 615.5 | 8.1 | ||||||
| GSF0950 | 95 | 79.5 | 6.3 | GSF6500 | 650 | 625.5 | 8.1 | ||||||
| GSF1000/1 | 100 | 89.0 | 4.2 | GSF6600 | 660 | 635.5 | 8.1 | ||||||
| GSF1000 | 100 | 84.5 | 6.3 | GSF6700 | 670 | 642.0 | 9.5 | ||||||
| GSF1000/2 | 100 | 79.0 | 8.1 | GSF6800 | 680 | 652.0 | 9.5 | ||||||
| GSF1050 | 105 | 89.5 | 6.3 | GSF6900 | 690 | 662.0 | 9.5 | ||||||
| GSF1100 | 110 | 94.5 | 6.3 | GSF7000 | 700 | 672.0 | 9.5 | ||||||
| GSF1150 | 115 | 99.5 | 6.3 | GSF7100 | 710 | 682.0 | 9.5 | ||||||
| GSF1200 | 120 | 104.5 | 6.3 | GSF7400 | 740 | 712.0 | 9.5 | ||||||
| GSF1250 | 125 | 109.5 | 6.3 | GSF7500 | 750 | 722.0 | 9.5 | ||||||
| GSF1250/1 | 125 | 104.0 | 8.1 | GSF8000 | 800 | 772.0 | 9.5 | ||||||
| GSF1270 | 127 | 111.5 | 6.3 | GSF9000 | 900 | 872.0 | 9.5 | ||||||
| GSF1300 | 130 | 114.5 | 6.3 | GSF10000 | 1000 | 972.0 | 9.5 | ||||||
| GSF1300/1 | 130 | 109.0 | 8.1 | GSF10000/1 | 1000 | 962.0 | 13.8 | ||||||
| GSF1320 | 132 | 116.5 | 6.3 | GSF10500 | 1050 | 1022.0 | 9.5 | ||||||
| GSF1330 | 133 | 112.0 | 8.1 | GSF10650 | 1065 | 1027.0 | 13.8 | ||||||
| GSF1350 | 135 | 114.0 | 8.1 | GSF10700 | 1070 | 1032.0 | 13.8 | ||||||
| GSF1400 | 140 | 119.0 | 8.1 | GSF12000 | 1200 | 1172.0 | 9.5 | ||||||
| GSF1450 | 145 | 124.0 | 8.1 | GSF12000/1 | 1200 | 1162.0 | 13.8 | ||||||
| GSF1500 | 150 | 129.0 | 8.1 | GSF12250 | 1225 | 1187.0 | 13.8 | ||||||
| GSF1550 | 155 | 134.0 | 8.1 | GSF15000 | 1500 | 1462.0 | 13.8 | ||||||
| GSF1600 | 160 | 139.0 | 8.1 | GSF20000 | 2000 | 1962.0 | 13.8 | ||||||
| GSF1600/1 | 160 | 144.5 | 6.3 | ||||||||||
| GSF1650 | 165 | 144 | 8.1 | ||||||||||
